We install the outdoor people counting device. Our outdoor counter are based on LiDAR technology and provides all weather coverage. Combined with our outdoor and indoor people counting solutions we can crucial insights in the visitor “Turn in ” rate and also visitor to customer conversions. See bellow the detailed specifications of our out door people counting device.
Key Features:
- Classification of children / adults
- Zone classification
- Ethernet connectivity
- Data storage up to 2 months in case of loss of network
- Quad light curtain for secure people counting
- High counting accuracy of 98%
- Detection of directional movement
- Clearance width up to 32 m
- Installation height up to 20 m
- High flow rate up to approx. 500 people / min
- Laser class 1 (eye safe)
- Outdoor ability, integrated heating
- Impervious against environmental influences (sunlight, rain, shadow, darkness)
flexible angle bracket

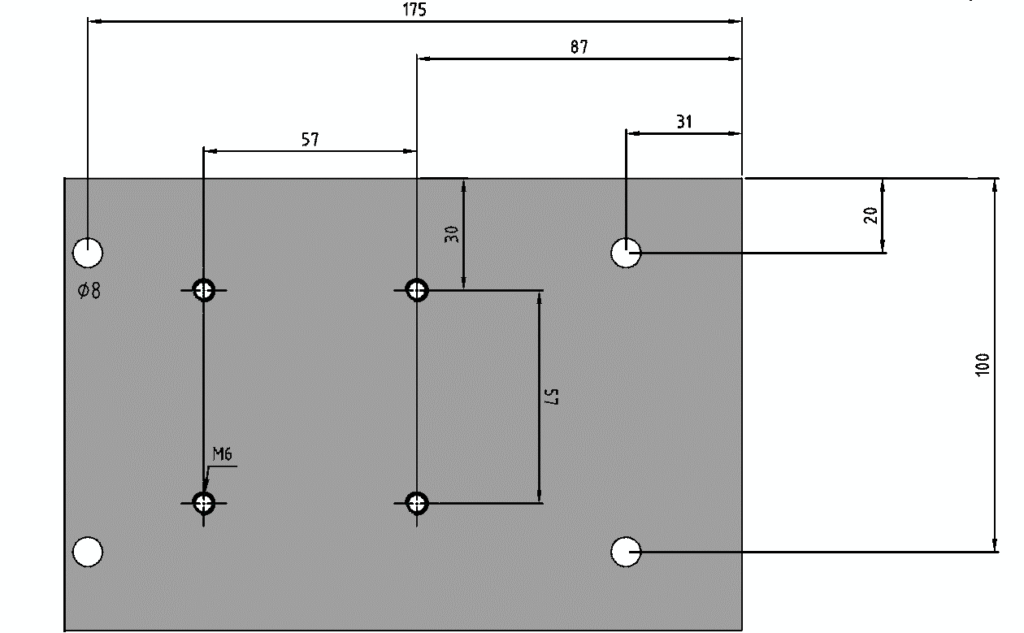

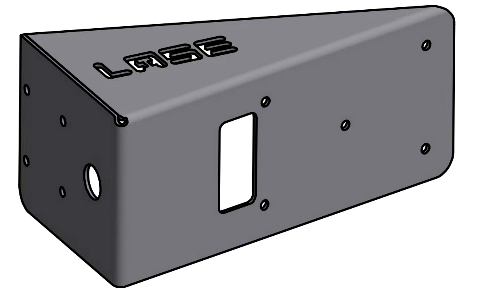

12° angle bracket
0° adapter plate
Operating principle
Total 4 Lines
In 2 lines
Out 2 lines
Distance between scan lines depends on installation height
Laser Based Peoplecounting Technical Data
| Features | PeCo LC Low 2.0 | PeCo LC High 2.0 |
| Installation height | 4m … 8m | 8m … 20m |
| Counting accuracy | 98 % | |
| Light source | Infrared (905 nm) Visible laser (645 nm) defeatable | |
| Laser class | Class 1, EN 60825-1; 94, 96, 01; eye-safe Class 2 (Laser marker defeatable) EN 60825-1 | |
| Status-LED | 3 | |
| Scan-/ and profile measurement | ||
| Aperture angle | 90 ° | |
| Scanning frequency | 40 Hz | |
| Interfaces | ||
| Ethernet | 100 Mbit/s (UDP) | |
| Serial data interface | RS-232: 115200 Baud | |
| Mechanics / Electronics | ||
| Electrical connection | M12 Connector | |
| Operating voltage | DC 24V +/- 5 VDC; Power over Ethernet (24V) | |
| Power consumption | 7W (without heating) + 30W internal heating | |
| Protection class | IP 67 (DIN 40050) | |
| Dimensions (L x B x H) | 247 x 121 x 109 mm | |
| Weight | 2.6 kg | |
| Ambient data | Ambient data | Ambient data |
| Ambient operating temperature | -30° C ... +50° C | -30° C ... +50° C |
| Storage temperature | -30° C ... +80° C | -30° C ... +80° C |
